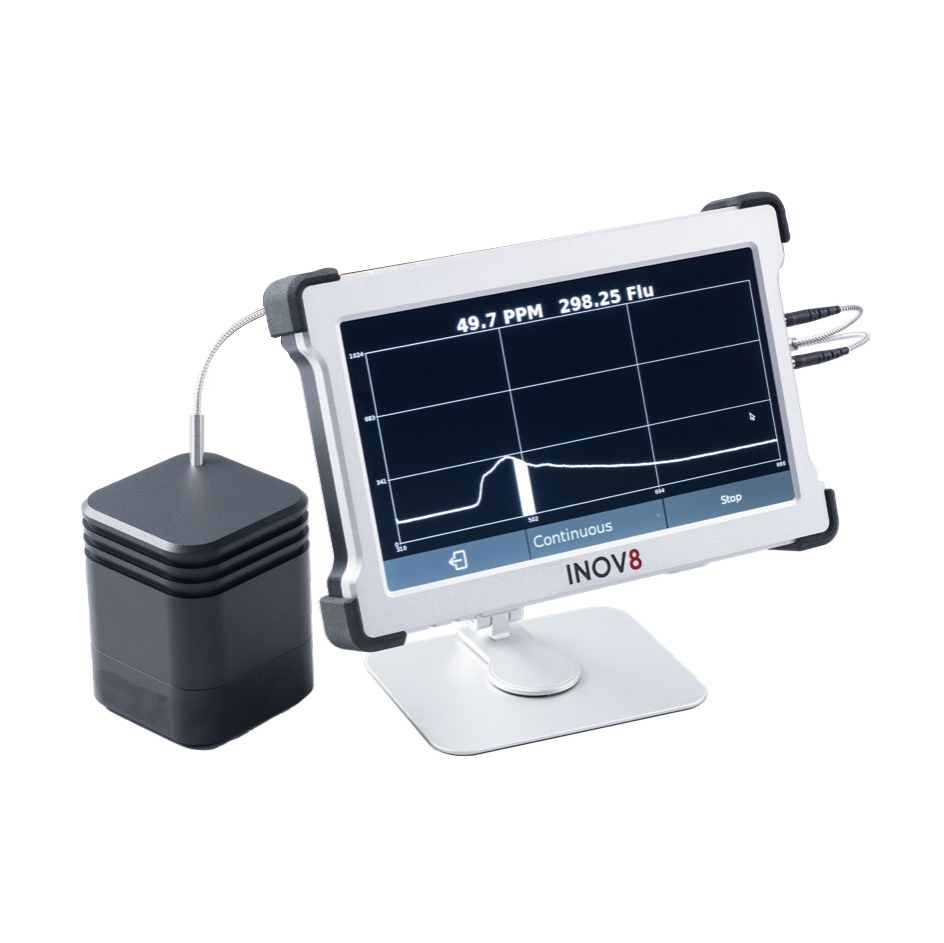

HT405P Portable Meter

Oil in Water Measurement

Customer inspired innovation

Leveraging decades of innovation experience in the Oil & Gas industry, Inov8 Systems have developed the most sophisticated Portable Oil in Water measurement device available today.  The HT405P/HT280P is the only Handheld Hydrocarbon measurement device that utilises a full  scale spectrometer for measurement.

Features

• All-in-one Hand Held Portable & Benchtop Device
• Built-in rechargeable battery

• Integrated 10.1” Touchscreen Colour Display

• Linux based PC operation

• Simple Intuitive Interface for set—up and control

• 1.8kg weight

• Flexible, Durable Probe for Measurement

• Results can be correlated to official lab methods (USEPA 1664B and ISO 9377-1)

• Full real time Spectrometry for measurement and analysis

• Continuous real-time measurements with Immediate results

• 12 months standard warranty

• Hydrocarbons measured: Crude Oil, Gas Condensate, PAH’s, Phenol’s, lubricants

Operating Conditions

• Ambient Temperature:  0ºC to 40ºC

Electrical

• Power Source: Built-in rechargable battery

• Charging Port: DC Jack

• Supplied with 110/230VAC to 24VDC charger

Mechanical

• Dimensions: 266mm x 175mm x 40mm

• Probe Length: 80mm

• Cable Length: 0.7m

• Weight: 1.8kg

• Wetted Parts: SS Standard

Measurement

• Light Source: Solid State CW 5mW Laser or Deep UV LED

• Measurement Method: Fluorescence Spectrometry

• Range: 1-1,000* ppm

• Accuracy: +/- 1%

• Sample Rate: < 1 sec

• Repeatability: < +/- 1%

• Calibration: Multiple Calibrations Stored

Communications

• Bluetooth
• Wifi

Compliance

• UKCA/CE marked
