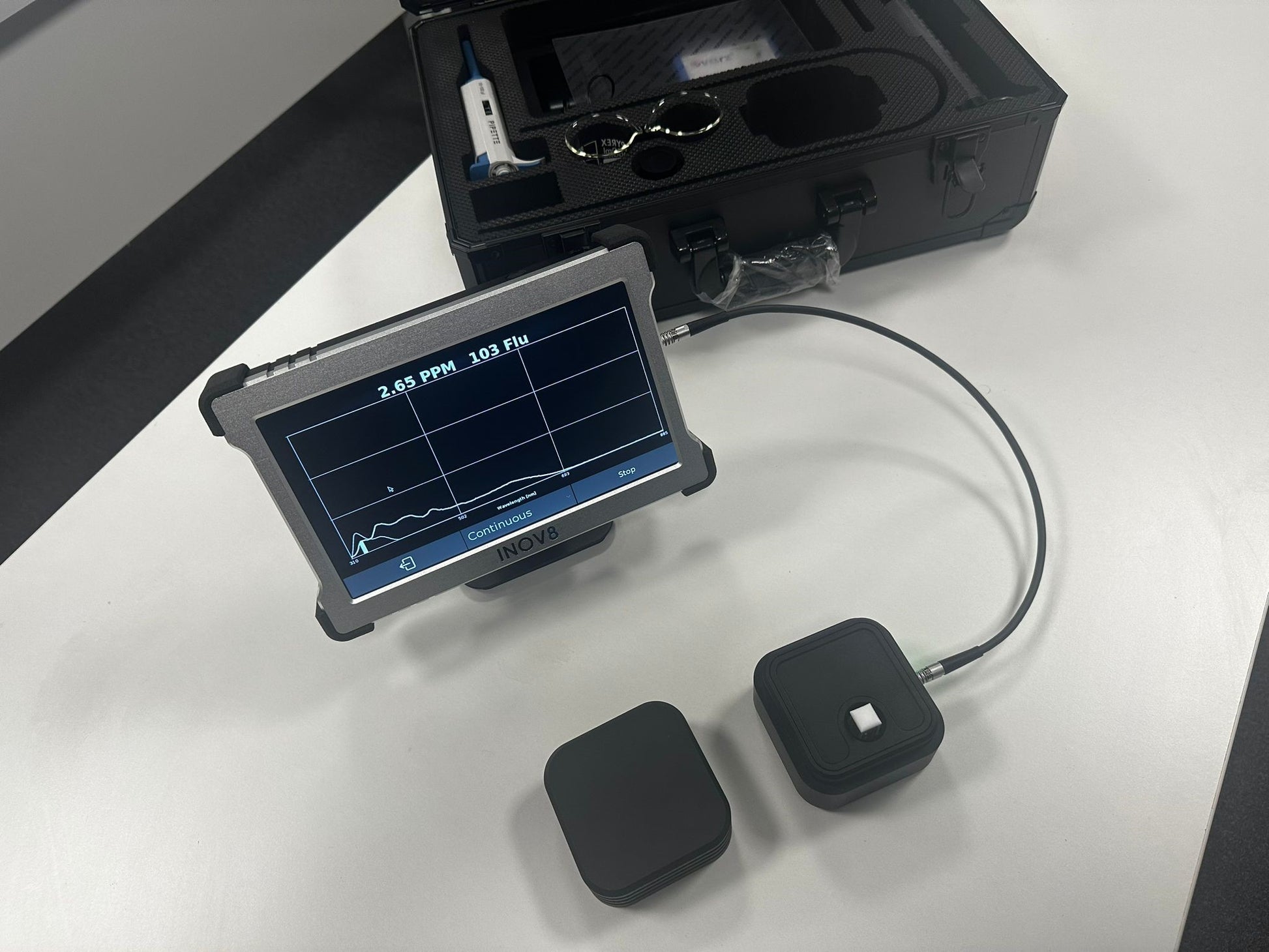

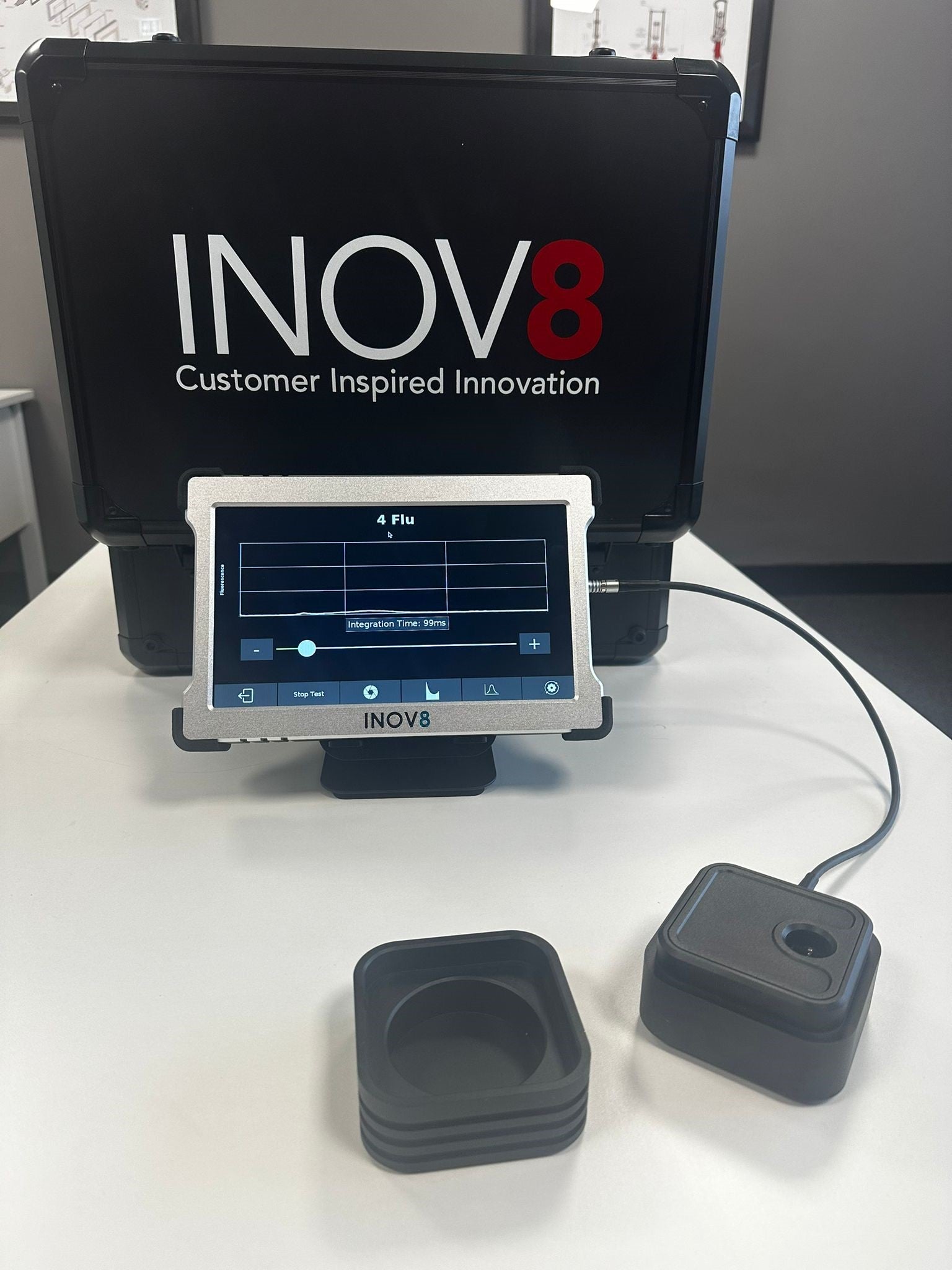

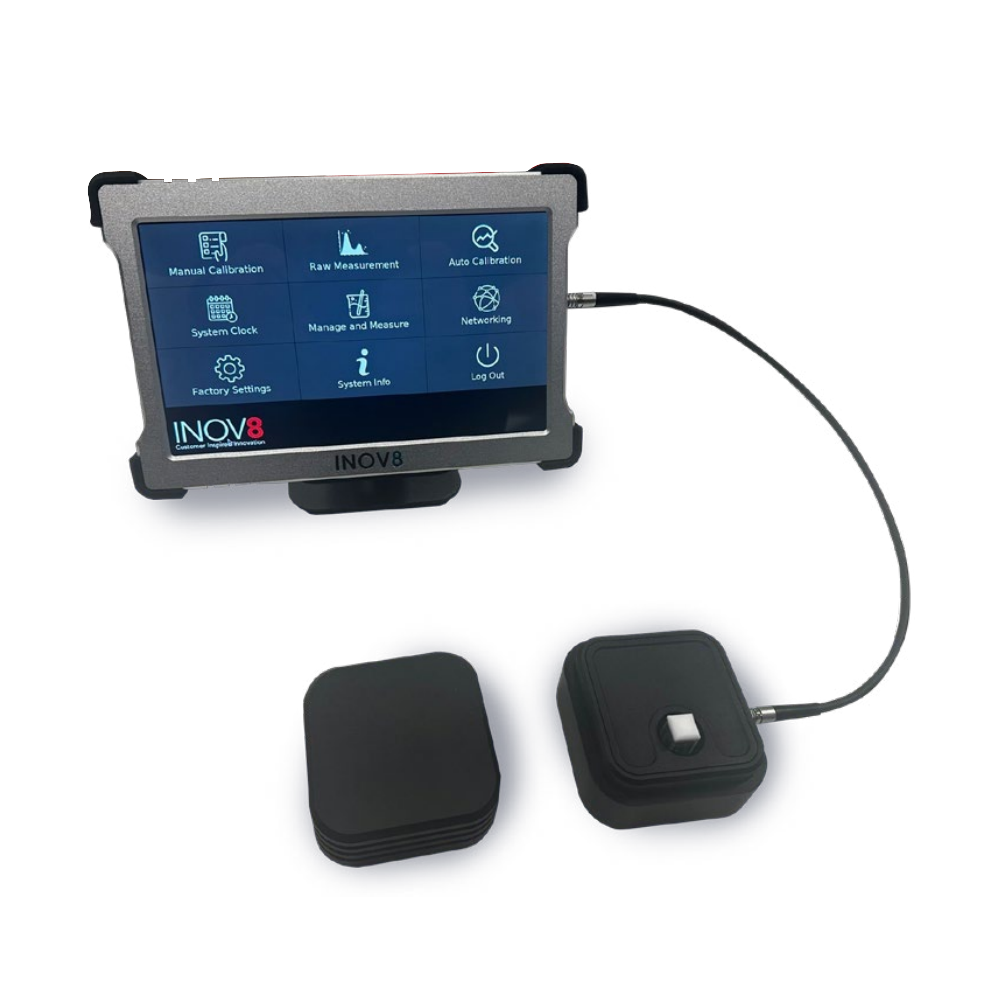

HT280C Portable Meter

Oil in Water Measurement with both Surfactant & Solvent Capabilities

Leveraging decades of innovation experience in the Oil & Gas industry, Inov8 Systems have developed the most sophisticated Portable Oil in Water measurement device available today. The HT280C is the only Handheld Hydrocarbon measurement device that utilises a full scale spectrometer for measurement.

Features

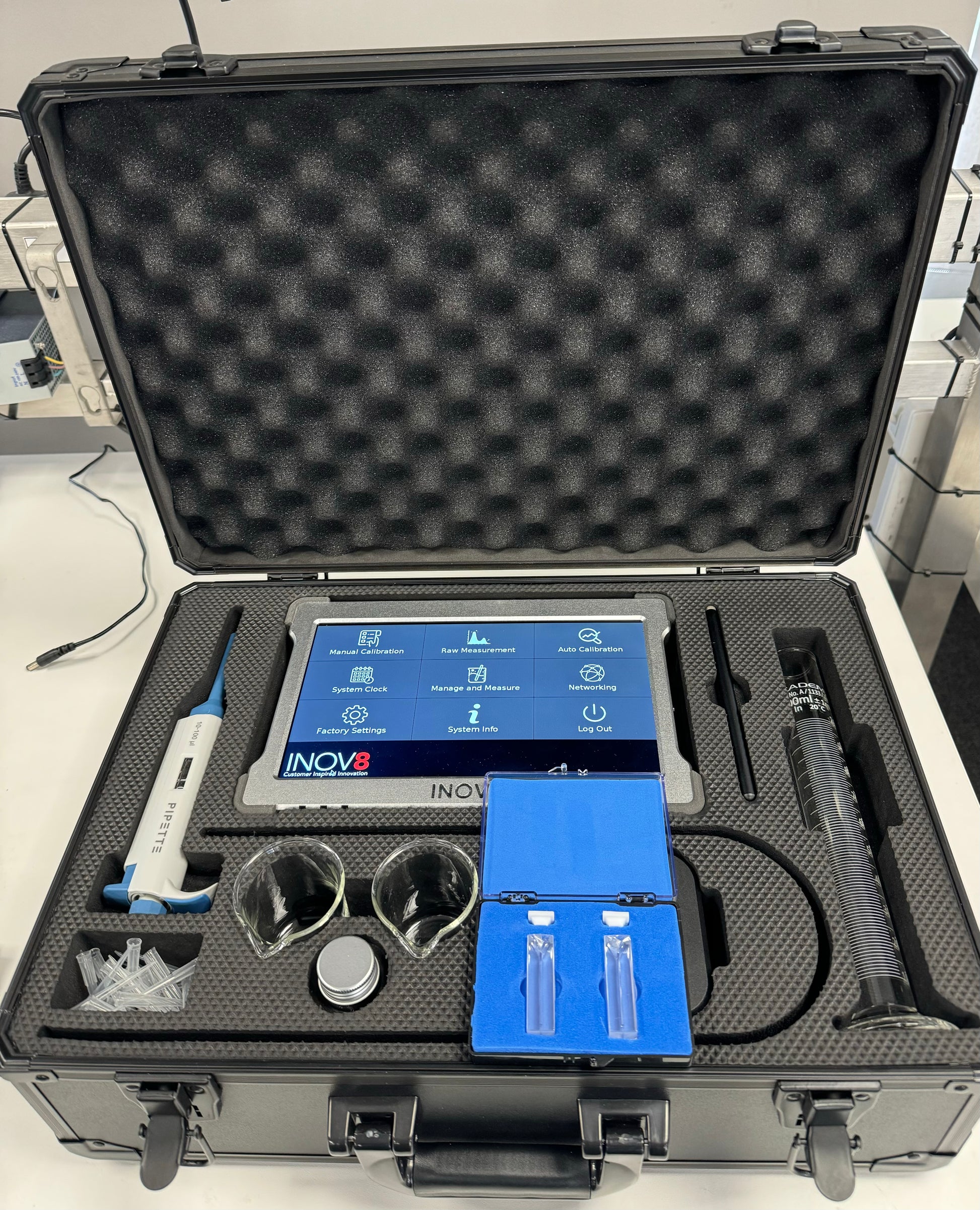

• All-in-one Hand Held Portable & Benchtop Device
• Built-in rechargeable battery

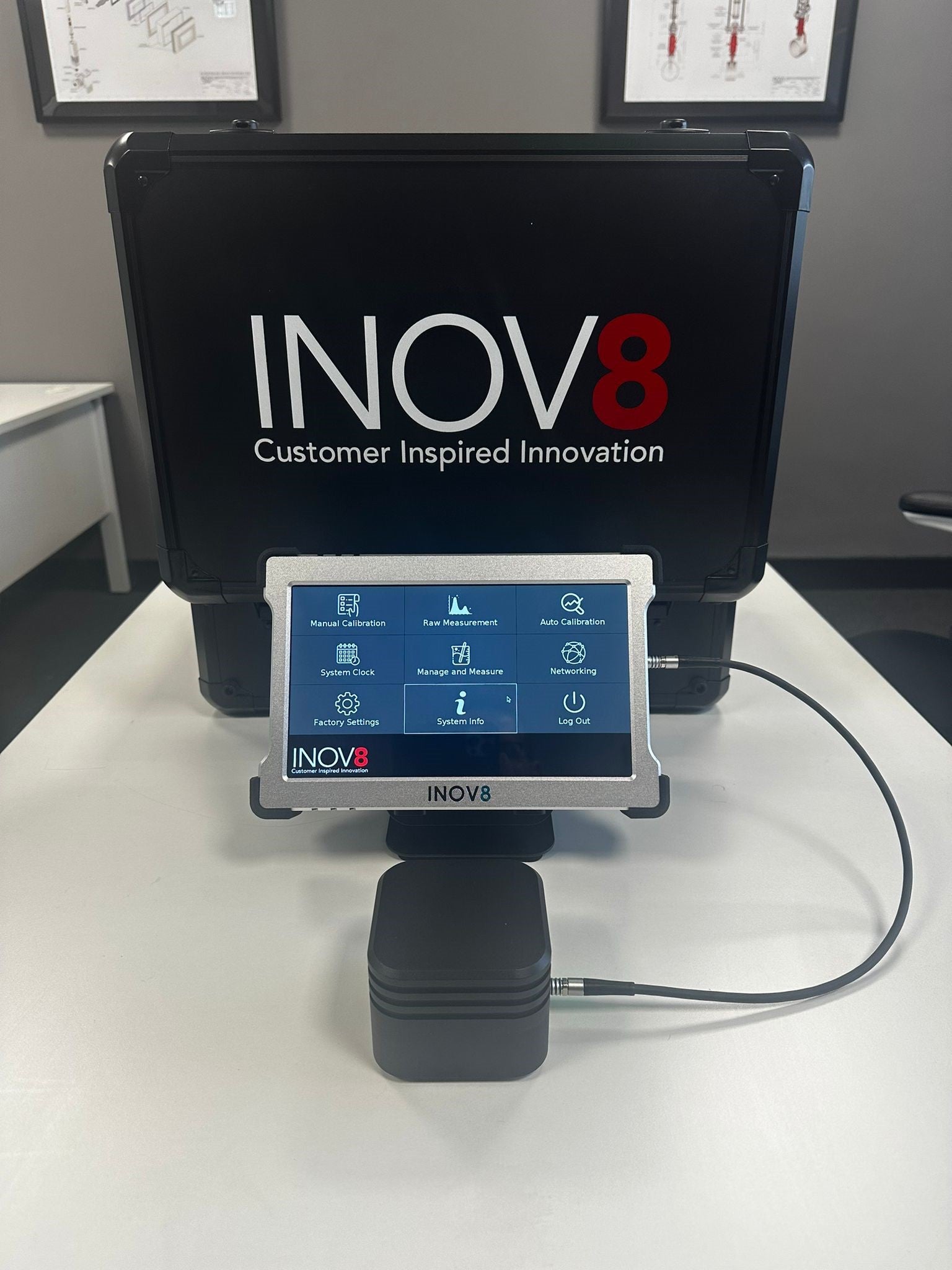

• Integrated 10.1” Touchscreen Colour Display

• Linux based PC operation

• Simple Intuitive Interface for set—up and control

• 1.8kg weight

• Flexible, Durable Probe for Measurement

• Results can be correlated to official lab methods (USEPA 1664B and ISO 9377-1)

• Full real time Spectrometry for measurement and analysis

• Continuous real-time measurements with Immediate results

• 12 months standard warranty

• Hydrocarbons measured: Crude Oil, Gas Condensate, PAH’s, Phenol’s, lubricants

Operating Conditions

• Ambient Temperature:  0ºC to 40ºC

Measurement Range

Surfactant method

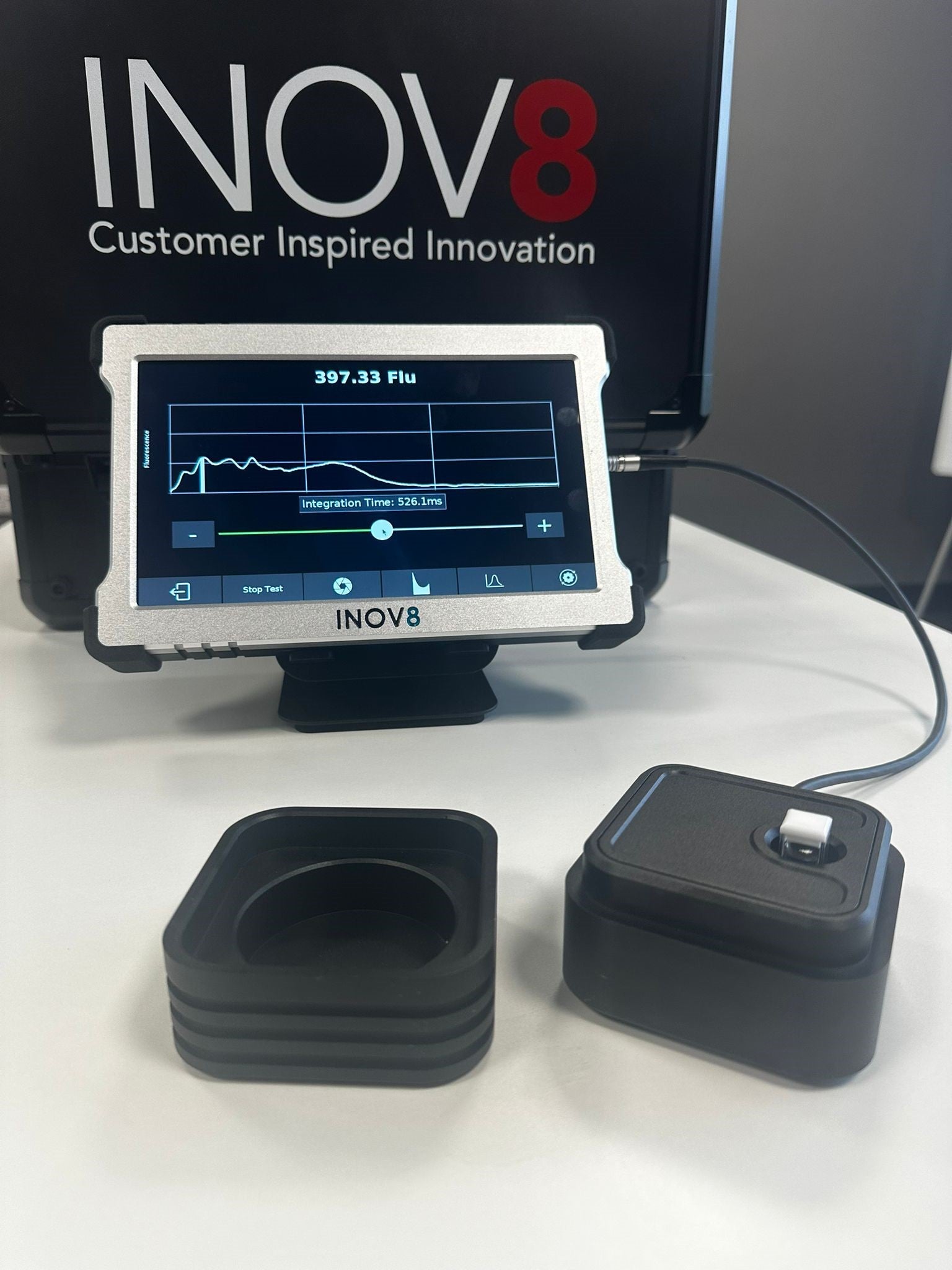

• 0 – 1000 PPM, With a regular 3.5ml Cuvette  (standard cuvette)
• Handhelds can be calibrated up to 1000PPM, 0-10PPM, 0-50PPM, 0-100PPM,

• For calibration purposes and sample preparation 1:1 surfactant to oil

Extraction method

• 0 -100 PPM: 1:5 Ratio of solvent to Produced Water Sample, Extracted 3 times, in a standard 3.5ml cuvette

• 0 – 500PPM: 1:1 Ratio of solvent to Produced Water Sample, Extracted 3 times, in a standard 3ml cuvette

• 0-1000PPM: 1:1 Ratio of solvent to Produced Water Sample, Extracted 3 times, in a 0.35ml micro cuvette

• NOTE: 0.35ml cuvette required for samples 500-1000ppm

Electrical

• Power Source: Built-in rechargable battery

• Charging Port: DC Jack

• Supplied with 110/230VAC to 24VDC charger

Mechanical

• Dimensions: 266mm x 175mm x 40mm

• Cable Length: 0.7m

• Weight: 1.8kg

Measurement

• Light Source: Deep UV LED

• Measurement Method: Fluorescence Spectrometry

• Range: 1-1,000* ppm

• Accuracy: +/- 1%

• Sample Rate: < 1 sec

• Repeatability: < +/- 1%

• Calibration: Multiple Calibrations Stored

*dependent on oil type

Communications

• Bluetooth
• Wifi

Compliance

• UKCA/CE marked
